AKM Models upload to GitHub
Introduction
This guide will help you to upload your models to GitHub.
A AKM Project file (.json) will be uploaded to GitHub as a “text-file”.
Upload the project file to GitHub repository
(first in AKM Modeller)
Go to the GitHub repository Find Link in "GitHub" button dialog
A link to the repository can be fond:
Click on "GitHub" button to open the dialog for GitHub repository.
Click on the "Click here to open GitHUb" link at the bottom of the dialog.
A new browserwindow opens with the repository page.
Click on "X" button in the top right corner to close the current GitHub dialog.
---
(then in GitHub repository page)
Make sure you open the folder with the model files.
If you want to update a existing project, make sure to use the same project.json filename. (or else it will be uploaded as a new project file).
Click on the “Add file” button, and a new upload dialog opens.

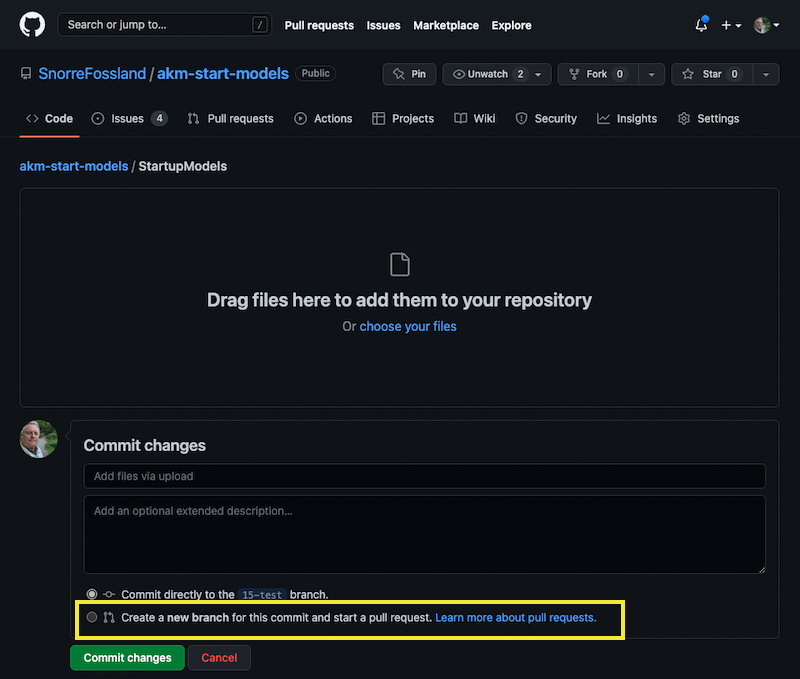

Upload the Project file: Drag or Choose file to upload, tick off "Create a new branch for this commit and start a pull request", and then click "Commit changes"
..
Drag in or "choose your files.
Select ***"Create a new branch for this commit and start a pull request"***
Then click "Commit changes" button.
![Code.png](/dementia-akm-models/img/DraginFiles.png)
Compare and Pull request Click "Compare & pull request" button.
..
Click "Compare & pull request" button.
![Code.png](/dementia-akm-models/img/ComparePullRequest.png)
Create Pull Request for the uploaded model project file Click "Create pull request" button.
..
(Add a comment and)Click "Create pull request" button.
![Code.png](/dementia-akm-models/img/CreatePullRequestUploadFiles.png)

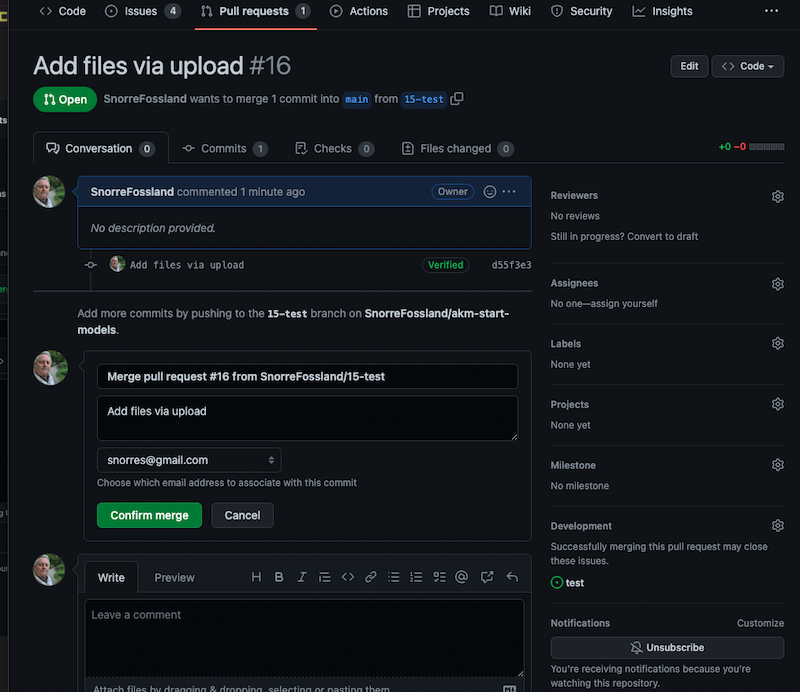

Confirm Merge Click "Confirm merge" button
..
Click "Confirm merge" button.
![Code.png](/dementia-akm-models/img/ConfirmeMergeOfUploadedProject.png)

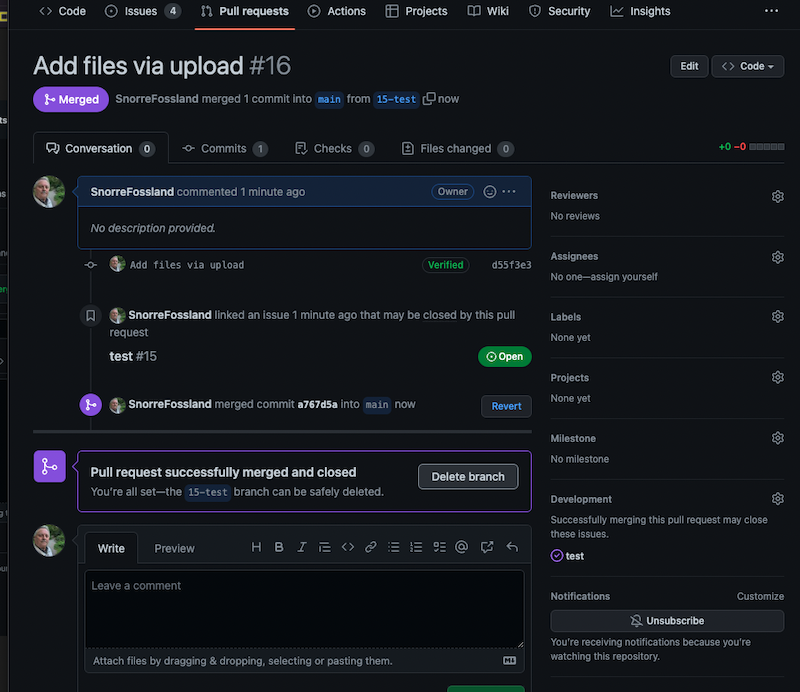

The update of the project file to the main branch is completed "Sucessfully Merged!"
..
The Main branch is updated with the new model project file
![Code.png](/dementia-akm-models/img/SuccessfullyMerged.png)
Delete you temporary branch Click: "Delete branch" button
..
Your branch which was created for the upload of the model project file can be deleted.
Back to README.md
